Mixcell System
$14,900.00
The Mixcell is our latest offering to support the new industry of 3D printing cementitious materials.
Our Mixcell was designed for the injection of accelerants and coloring additives into the cementitous materials during the 3D printing operation. You have a precise computer control over the flow of the accelerant and coloring.
Please contact us to purchase this item. We only accept cash, check, or wire transfer for this item. All credit card purchases incur a 3% fee.
The Mixcell is perfect for use with Sika 2K materials, such as Sikacrete-752 F 3D for both accelerant and color injection (depending on configuration). It can also be used with 1K materials like Sikacrete-733 W 3D for injecting color only. In-house testing shows material transitioning instantly after leaving the nozzle. This opens up tremendous opportunities when designing objects with overhangs that would not be possible to print without the accelerator. With the accelerator, the user can print large 8-10 ft objects nonstop with a small cross-section in addition to large structures and habitats without waiting for the material to harden. With color injection, users can simply color the concrete mixture throughout, removing the need to paint the dried concrete and reducing project completion time. The Mixcell with accelerator injection provides the opportunity to continually print a large project such as a habitat structure without stopping or waiting for the material to harden. Making unsupported overhangs when printing possible, this machine is a game changer for cement 3D printing.
The unit comes with an accelerant and color reservoir (depending on configuration) tank of 1.5 gallons, which can be easily increased to customers' specifications. The flow rate of accelerant and color is up to 440ml per minute. The machine is able to use accelerant and color at the same time. An integrated high-flow water injection system allows for immediate clean up and purging of the mixing chamber after printing operation or during setup.

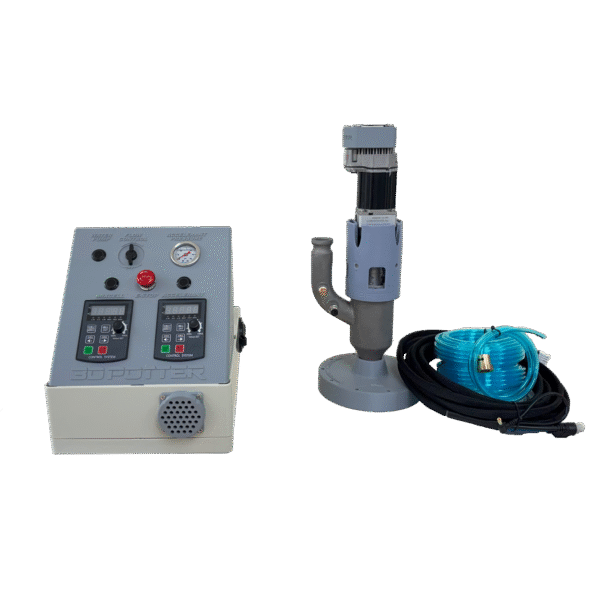

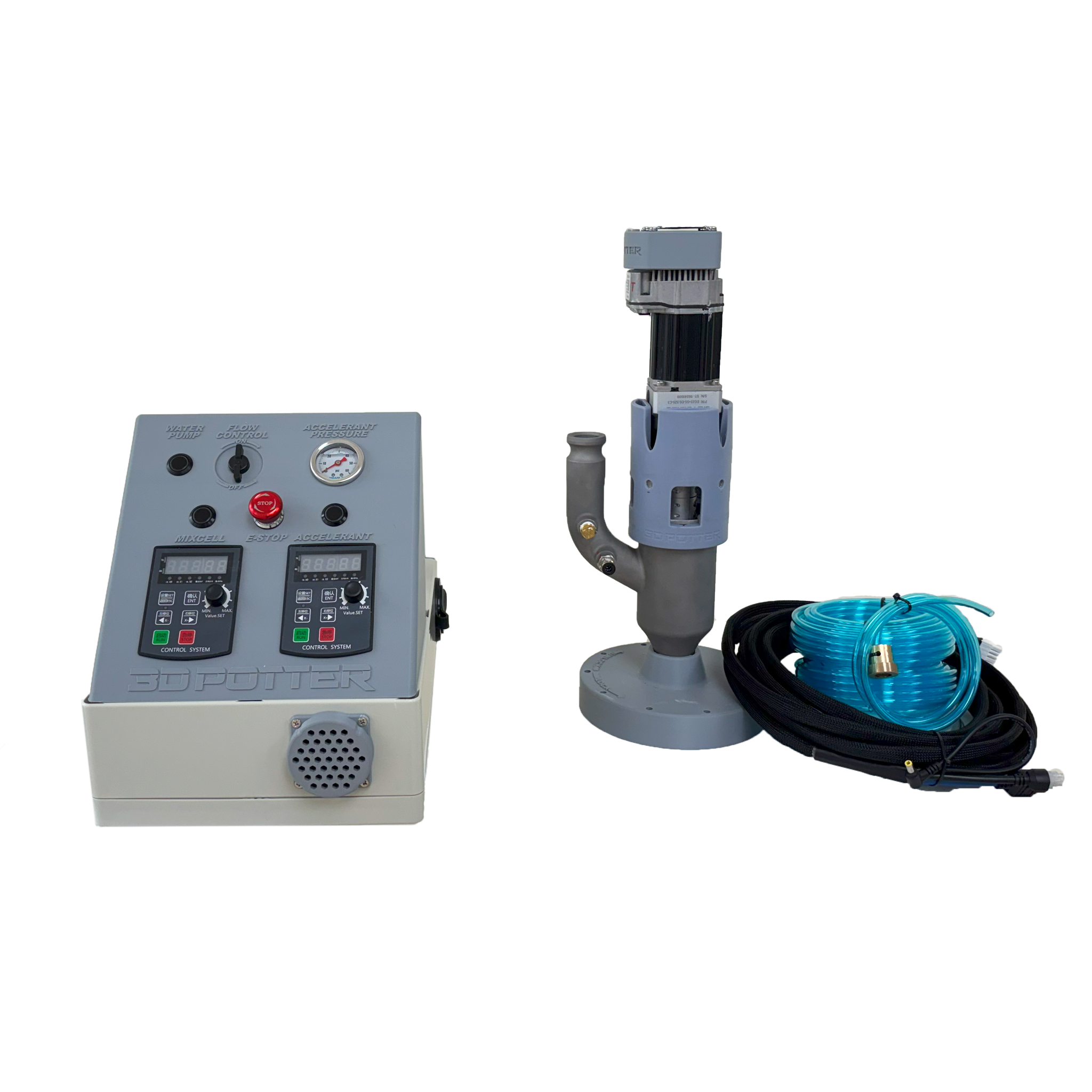

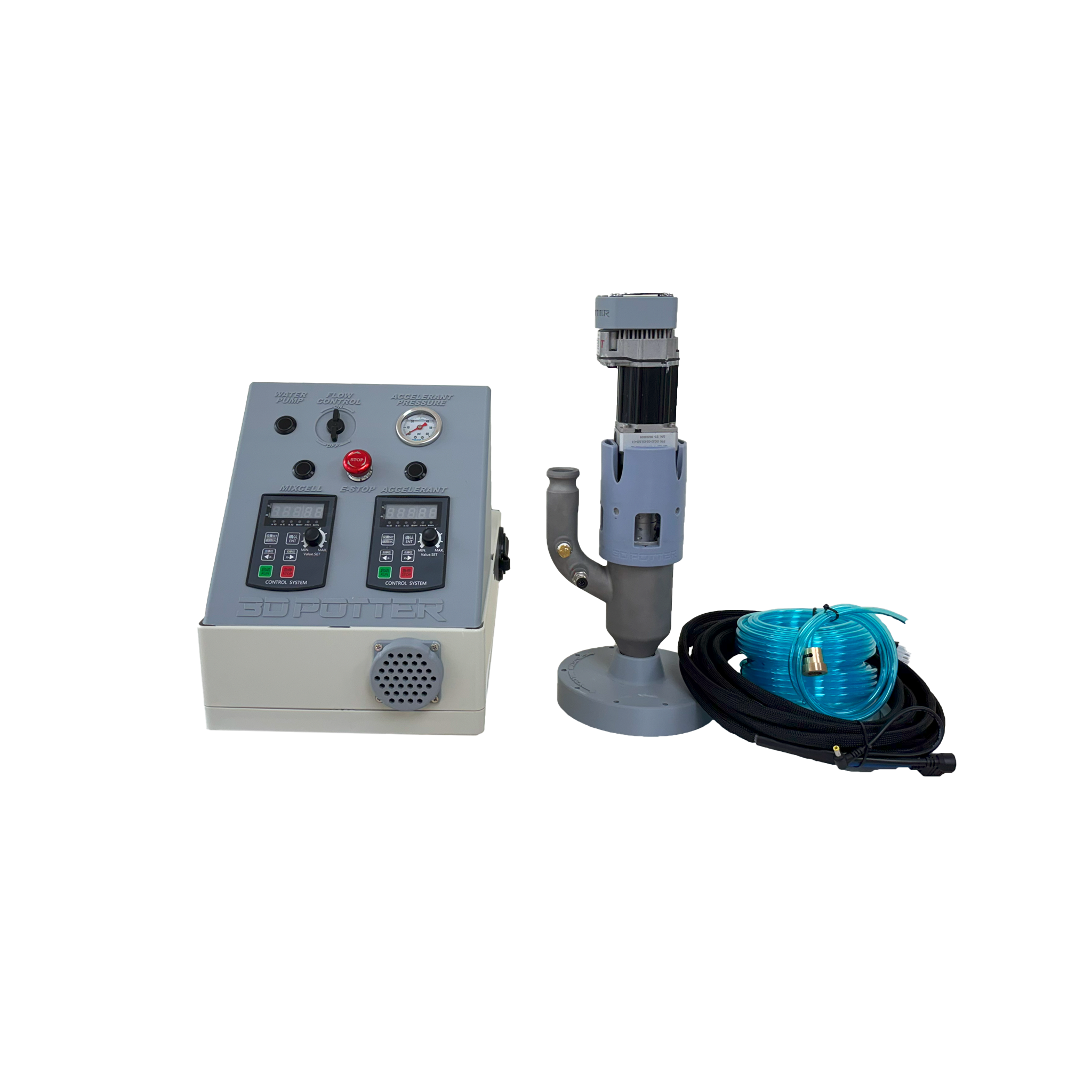

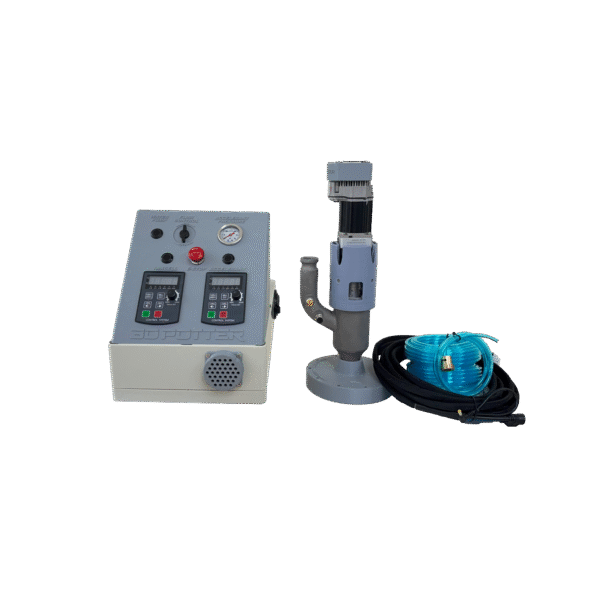

Mixcell Includes:

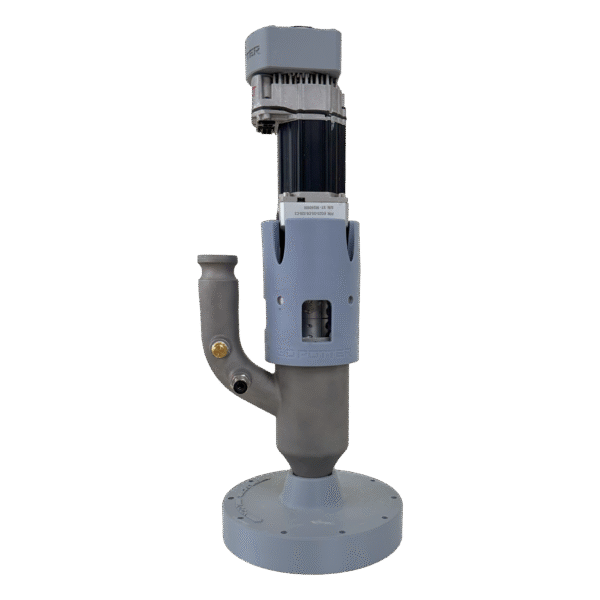

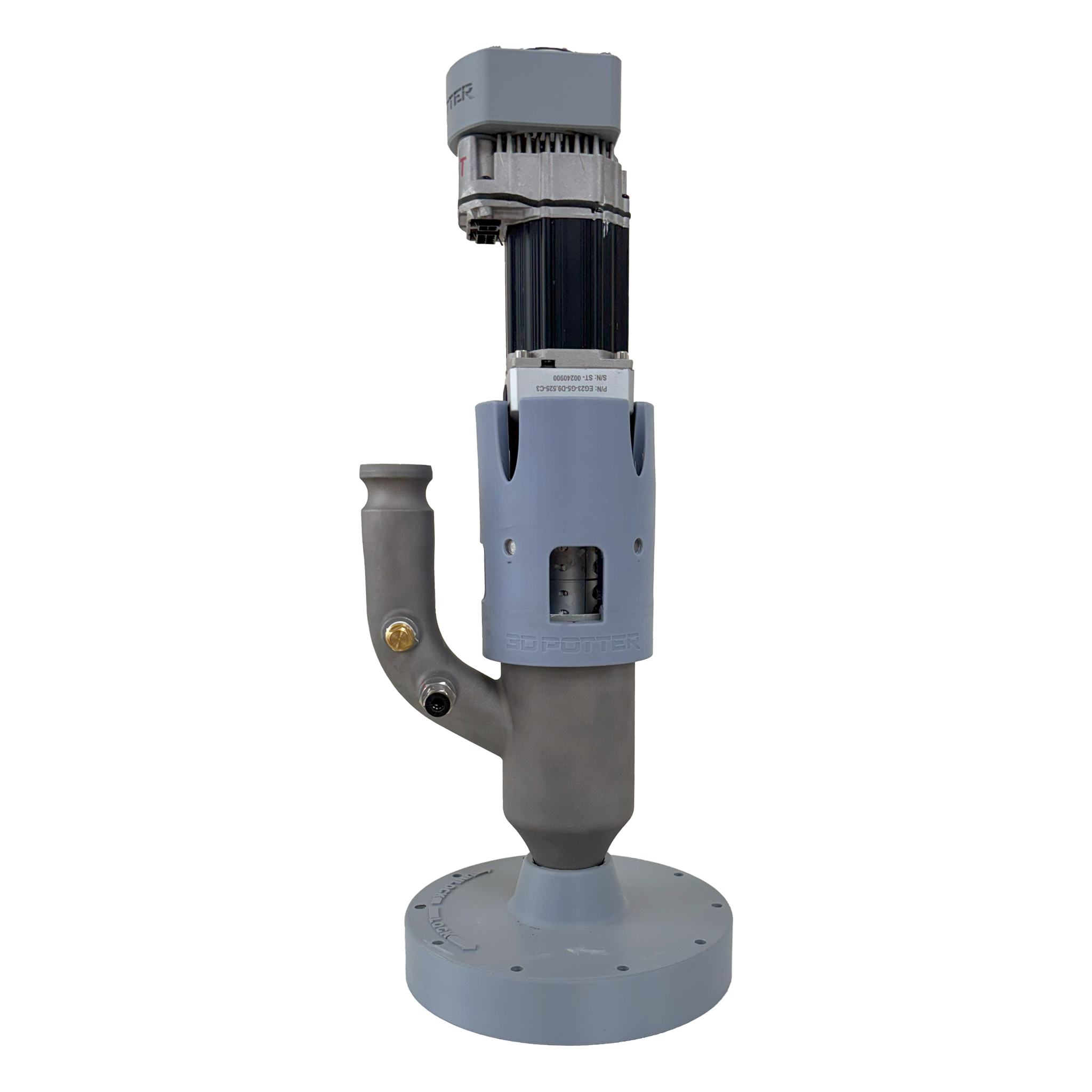

- Mixcell

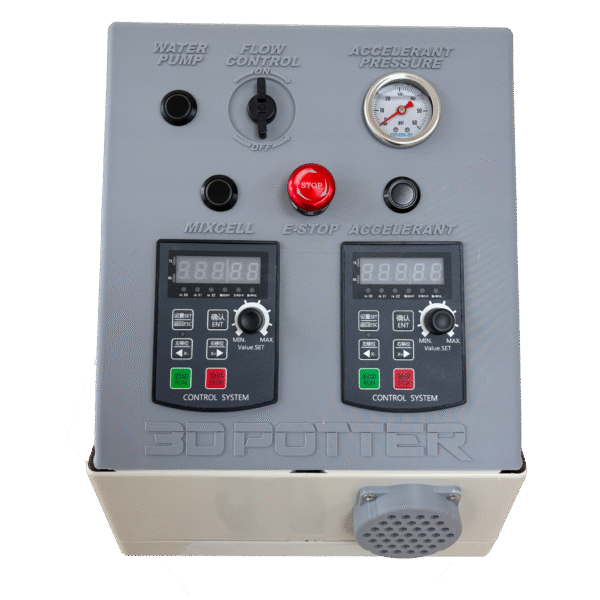

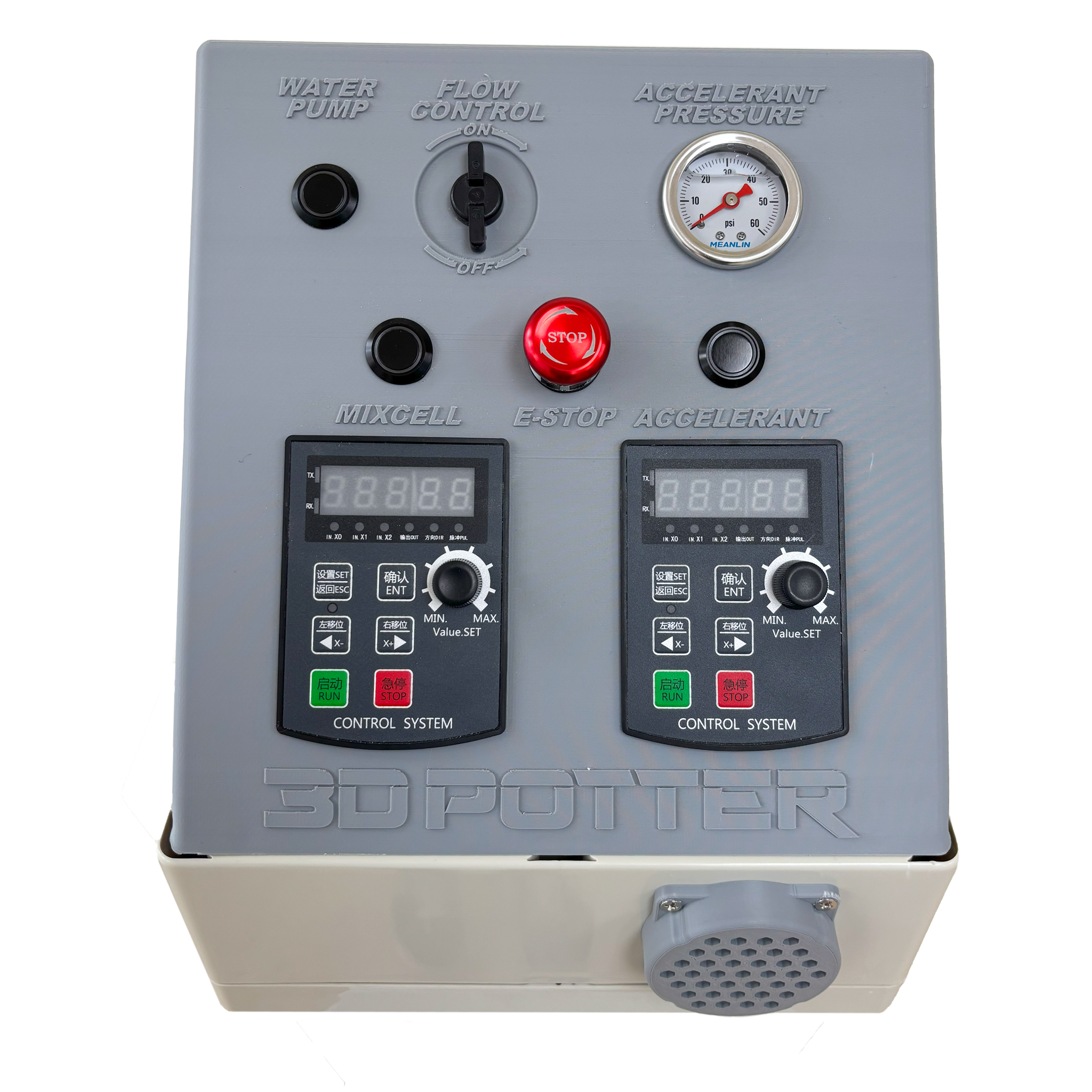

- Mixcell Station
- 2 nozzles, 1/2 in and 3/4 in. 1 in opening with no nozzle
- Accelerant pump
- Coloring Pump (if purchased)
