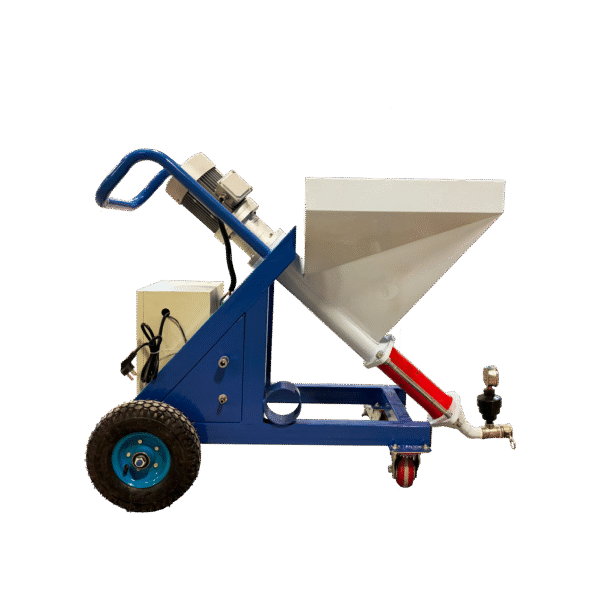

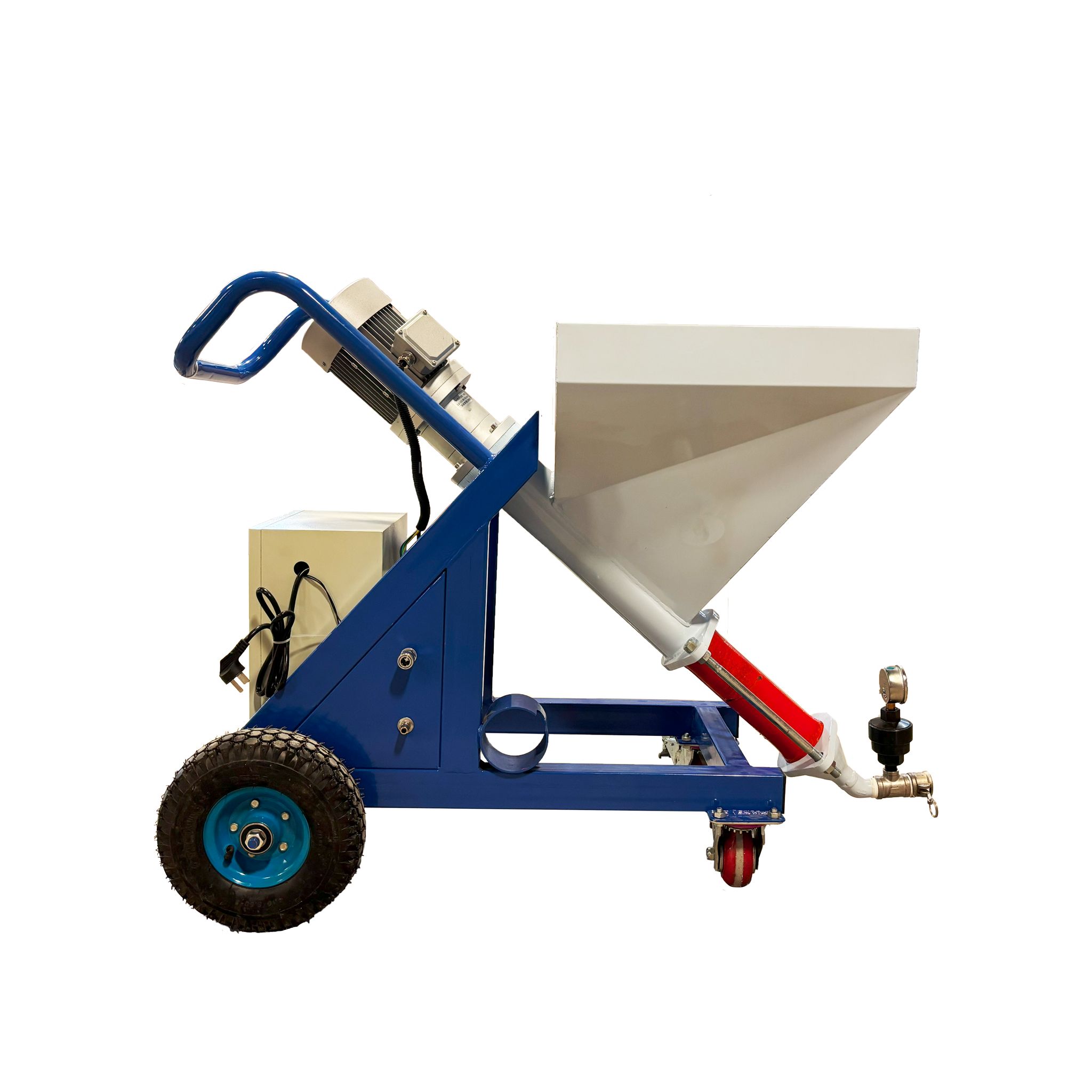

SureFlow 40 Pump
This pump is ideal for large-scale construction projects and medium-sized projects in universities and laboratories. It is specifically designed for continuous use with 3D printing architectural objects and housing projects.
This pump can operate continuously on 220V, 15 Amp service. It holds approximately 12.7 gallons of material.
*We have recently updated our control system with a high-performance VFD (variable-speed drive). Now featuring a digital display to control repeatable speed settings and reversing functions. The new control panel is also laying out the groundwork for future integration/flow control with both 3DPotter machines and robotic arms.
Easy to use, easy to clean, it’s a money-making machine!
Please contact us to purchase this item. We only accept cash, check, or wire transfer for this item. All credit card purchases incur a 3% fee.
The SureFlow 40 Pump
*We have recently updated our control system with a high-performance VFD (variable-speed drive). Now featuring a digital display to control repeatable speed settings and reversing functions. The new control panel is also laying out the groundwork for future integration/flow control with both 3D Potter machines and robotic arms.
The advantage of using just 220 Volts at 15 Amps, single phase, is that it allows the entire printer and pump to run off a small generator or a minimal power supply.
This pump comes with a pressure gauge at the nozzle, which is capable of reading up to 1400 PSI, although the pump is rated at 300 PSI.

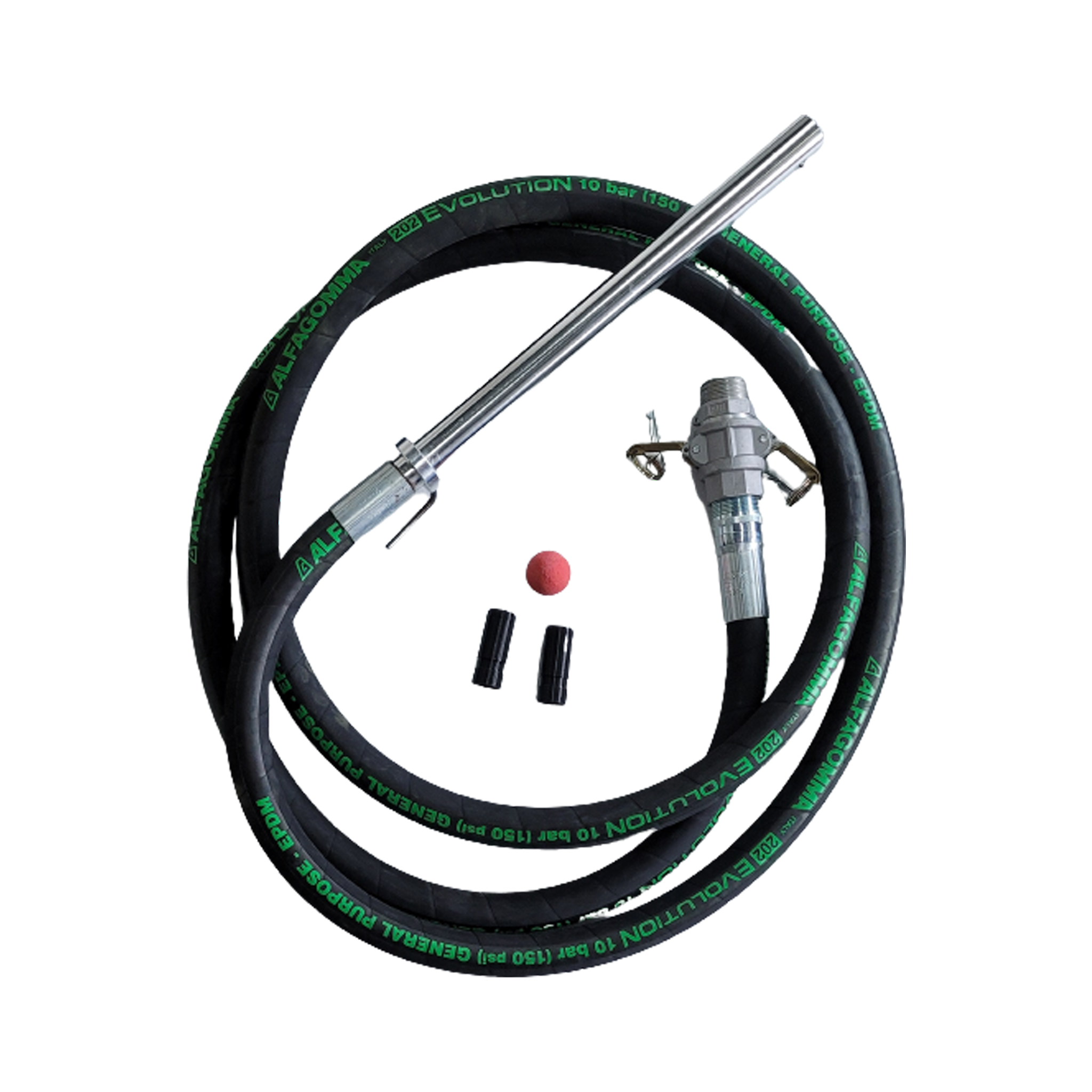

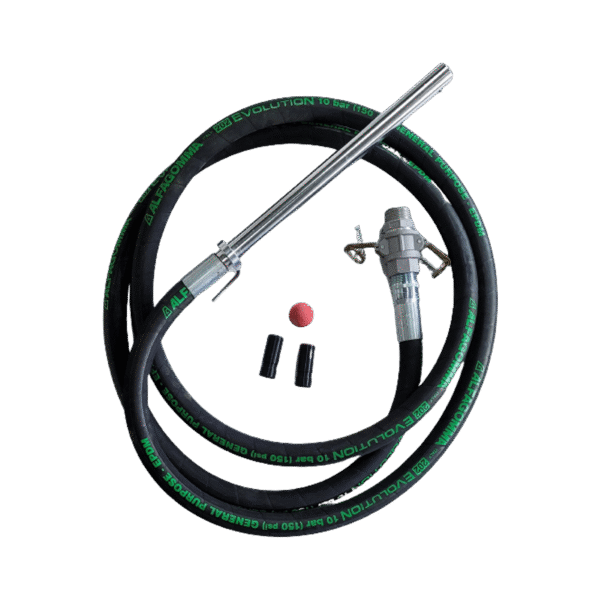

15 ft of 1 in hose and a nozzle assembly for Scara printers is included; however, additional custom hose lengths can be ordered.

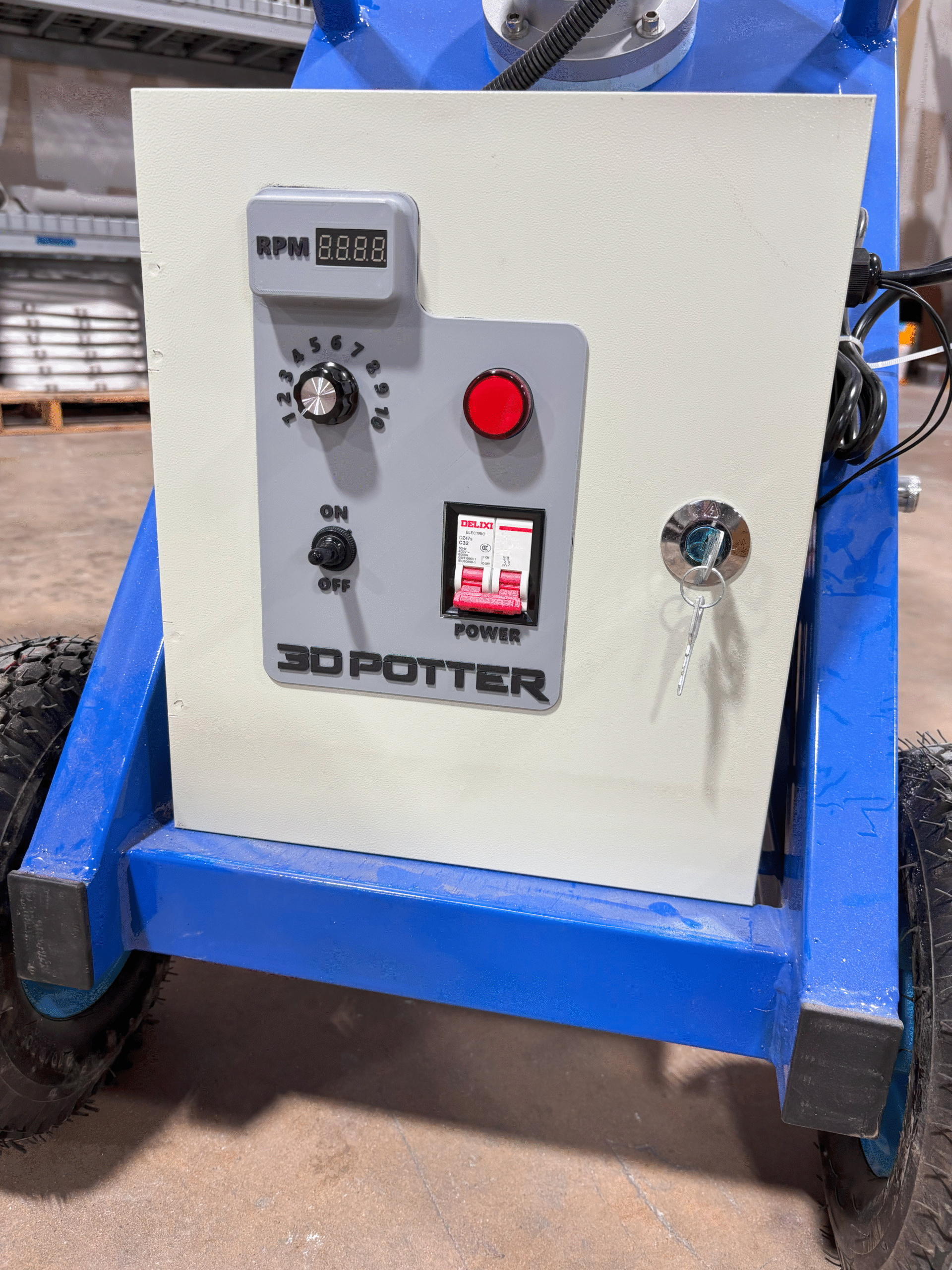

The control panel has a VFD and RPM readout and variable speed adjustment.
Built with reasonably priced consumables. Rotor stator packages under $350.
Compatible Machines and Accessories:
- Scara Elite: Large-scale cement 3D printer - https://3dpotter.com/product/scara-elite-v2/
- Scara Elite Roadrunner: The ideal 3D printer for building houses - https://3dpotter.com/product/scara-elite-roadrunner/
- Scara HD: Purpose-built for printing large-scale projects, such as housing - https://3dpotter.com/product/scara-hd/
- Mixcell System: Designed for the injection of accelerants and coloring additives into the cementitious materials - https://3dpotter.com/product/coyote-mixcell-and-accelerant-pump/
- Mixcell HD: Designed for the injection of accelerants and coloring additives into the cementitious materials, purpose-built for large-scale construction - https://3dpotter.com/product/mixcell-hd/
- Continuous Cement Mix Station: Our innovative computer-controlled Mixing Station, specifically constructed for the new generation of cementitious 3D printing materials - https://3dpotter.com/product/continuous-cement-mix-station/
- Mixcell Extender: Adds 13 inches of length to the Mixcell print head - https://3dpotter.com/product/mixcell-extender/
- Continuous Conveyor: Designed to sit over the Continuous Cement Mix Station and under a super sack silo, or fed with 55 lb sacks - https://3dpotter.com/product/continuous-conveyor/
*All pumps and mixers come with a 90-day warranty.*
Warranty Policy:
https://docs.google.com/document/d/1Z9jx1DyrXjjfqQqdB9YPhhqOt0luRj0OLynrjKcb8s4/edit?usp=sharing*
What’s Included:
- 15 ft of 1 in hose and a nozzle assembly for Scara printers
- Print nozzles: 5/8, 3/4, and 1 inch
- Quick-release hose connectors (1 ¼ inch NPT type D and F)
Specifications
Power: 220 Volt / 15 AmpMaterial Capacity: ~12.7 gallons
Aggregate Size: Max grain size: 3/32″ (2.4mm)
Max Flow Rate: 8 liter/min (2.11 gal/min)
Traveling Speed: 50-250 mm/sec in combination with our Mixcell System and Scara Elite Roadrunner
