Auger HP (24/75)

Price range: $8,950.00 through $15,000.00

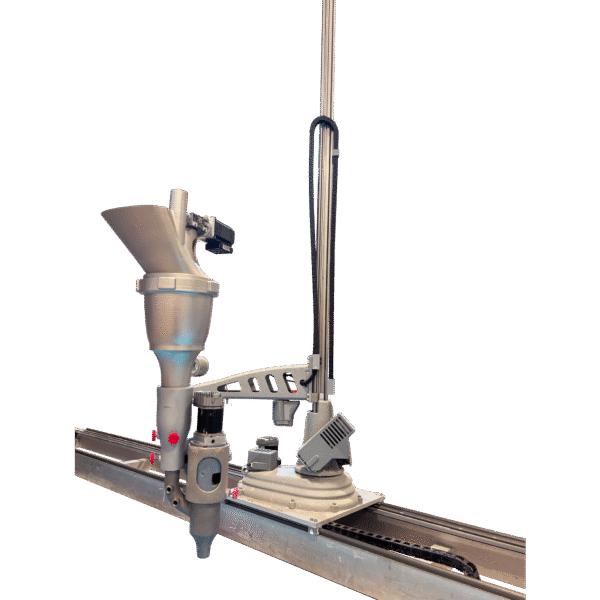

The auger can be directly controlled by the Scara V4, Scara Elite, 10 XL, or stand-alone driver. This allows you to have direct control over the flow and retraction of your 3D print.

The color may vary.

Pricing is based on material selection:

Aluminum: $8,950 (before tax/shipping)

Stainless Steel: $15,000 (before tax/shipping)

Please contact us to purchase this item. We only accept cash, check, or wire transfer for this item. All credit card purchases incur a 3% fee.

Stainless Steel vs Aluminum

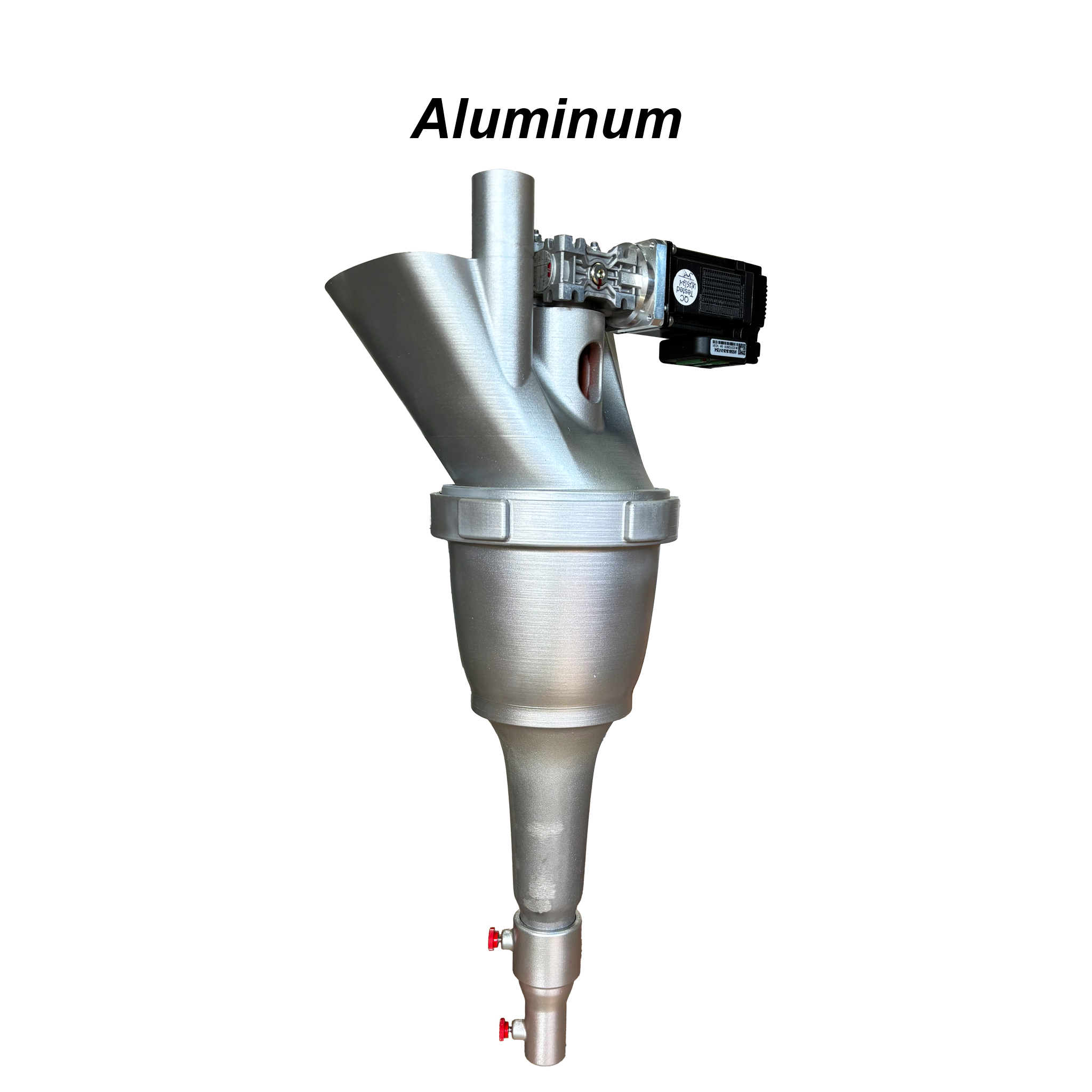

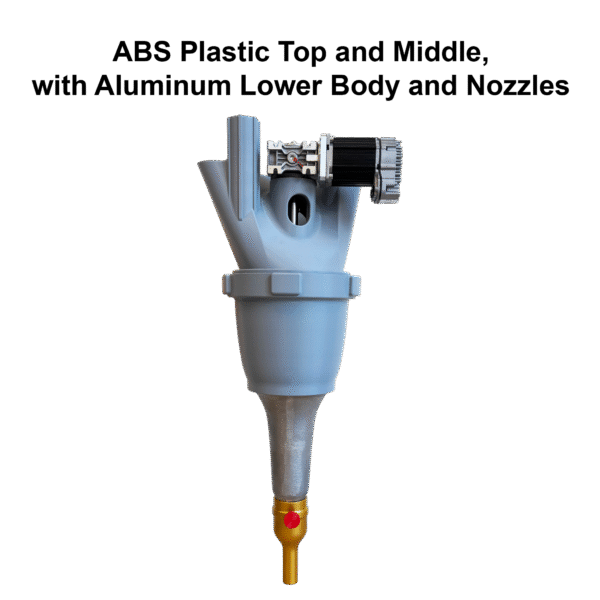

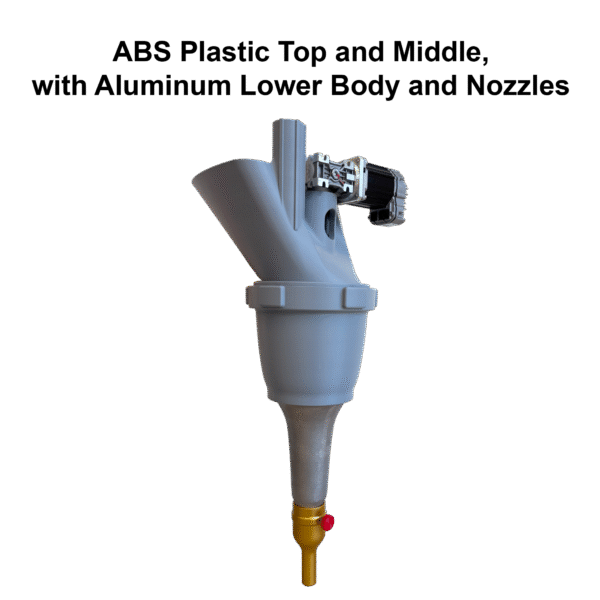

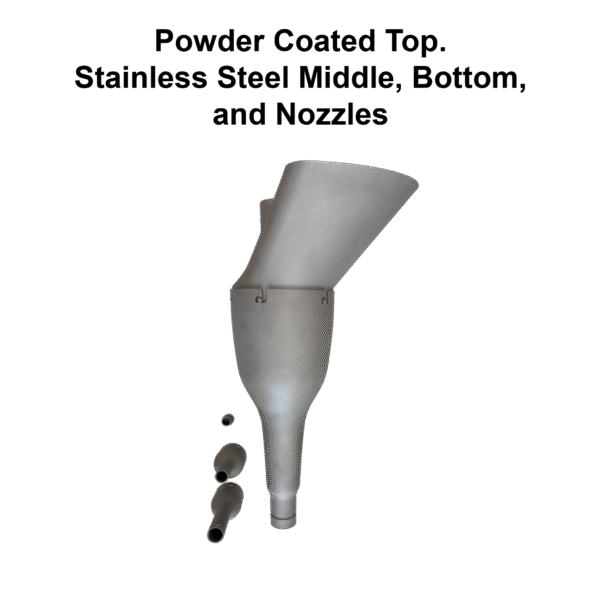

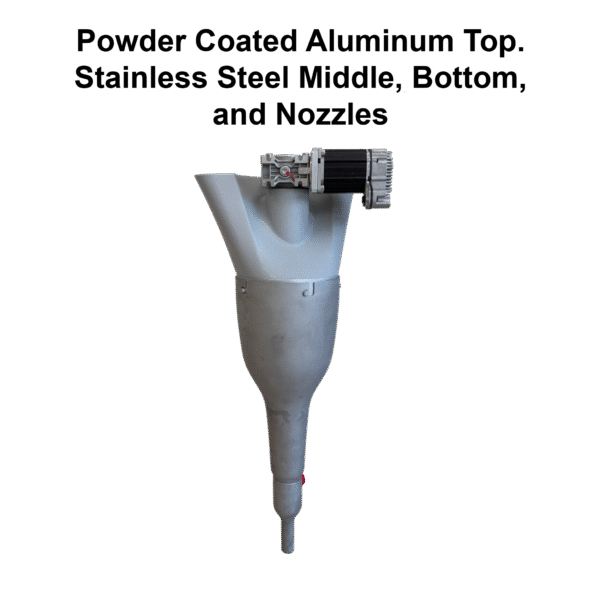

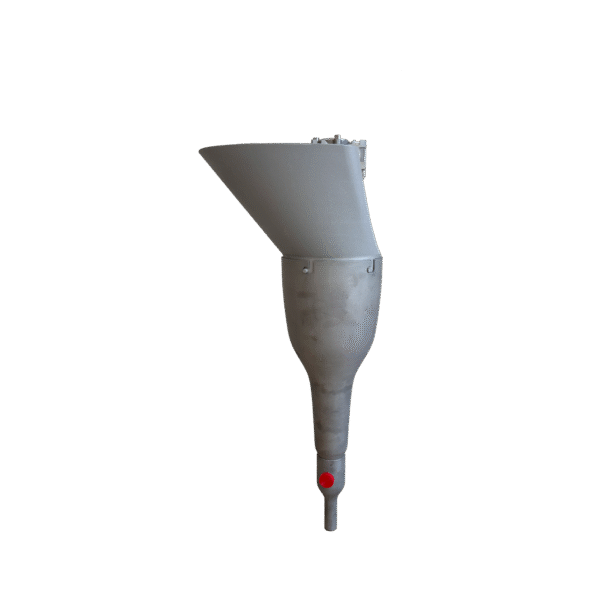

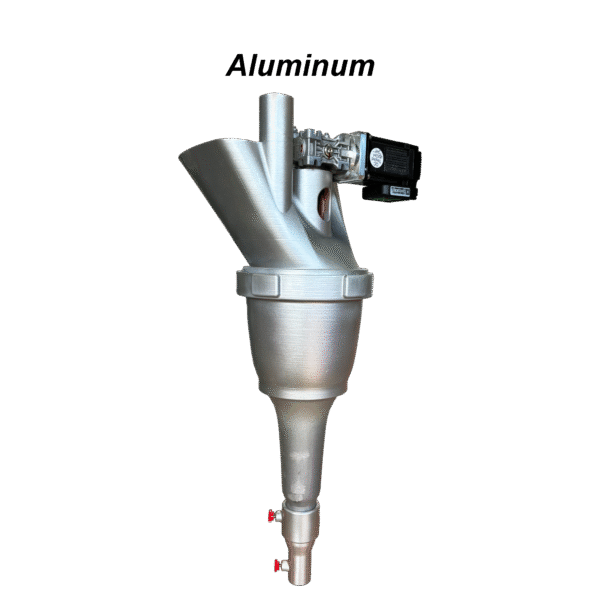

Our aluminum Auger consists of an aluminum middle and lower housing, with aluminum nozzles, and an ABS plastic upper housing. The stainless steel version features a stainless steel middle and lower housing, with stainless steel nozzles, and a powder-coated aluminum upper housing. Pricing is based on material selection.

Aluminum: $8,950 (before tax/shipping)

Stainless Steel: $15,000 (before tax/shipping)

Uses

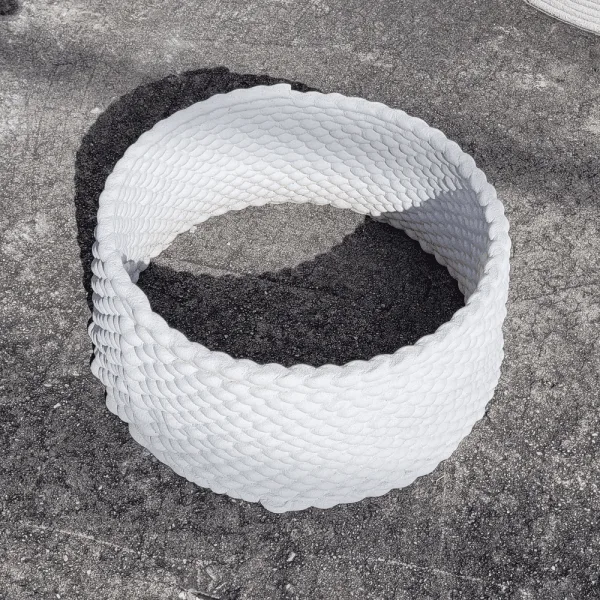

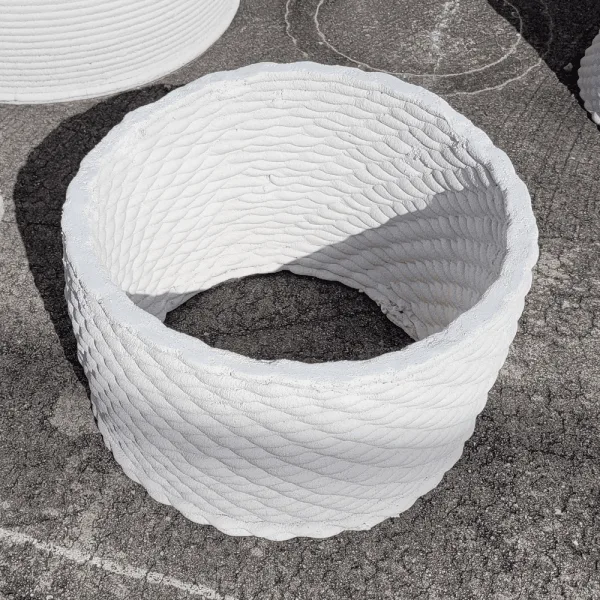

The Auger has been developed specifically for use with Cementous materials, allowing you to print small to medium-sized objects with minimal cleanup. The easy cleanup of the Auger makes it perfect for use in indoor labs and material testing. With direct flow controls, you can change print speeds without the need to adjust the extrusion rate, providing greater flexibility. It can be fed by hand or directly by a pump. Although this system will work with a variety of materials, there are some limitations. We recommend aggregate no larger than 2mm, and the material consistency also needs to be adjusted correctly. Avoid excessively thick materials with a high clay content.

Our Auger works especially well with the new 3D Printing products from Sika Corporation. #752

It is possible to print clay, but the consistency needs to be relatively loose. With the clay at this consistency, it's not practical to print unless you plan on injecting some other chemical into the solidified clay after printing.

Auger: Basic Tutorial




Weight: 12lbs (5.4kg)
Size: ~14in diameter at the top, ~28in tall.
Attachment sleeve outside diameter: ~3.5in to ~4in, 5in tall.

Auger includes:
- Top drive assembly with gearbox and motor
- Auger screw assembly
- 3 nozzles: 1 inch, 3/4 inch, and 5/8 inch. 1 inch opening with no nozzle
- Adapter sleeve (depending on printer model it is going on)

AugerHP 24 and 75: Flow Rate Test

AugerHP 24 vs 75 Volt

We offer two voltage options for this product: 24 or 75. The 24 is for 24-volt systems. The 75 is for 75-volt systems. These may be interchanged later if needed.

Additional information

Voltage

HP24, HP75

Material

Aluminum, Stainless Steel
