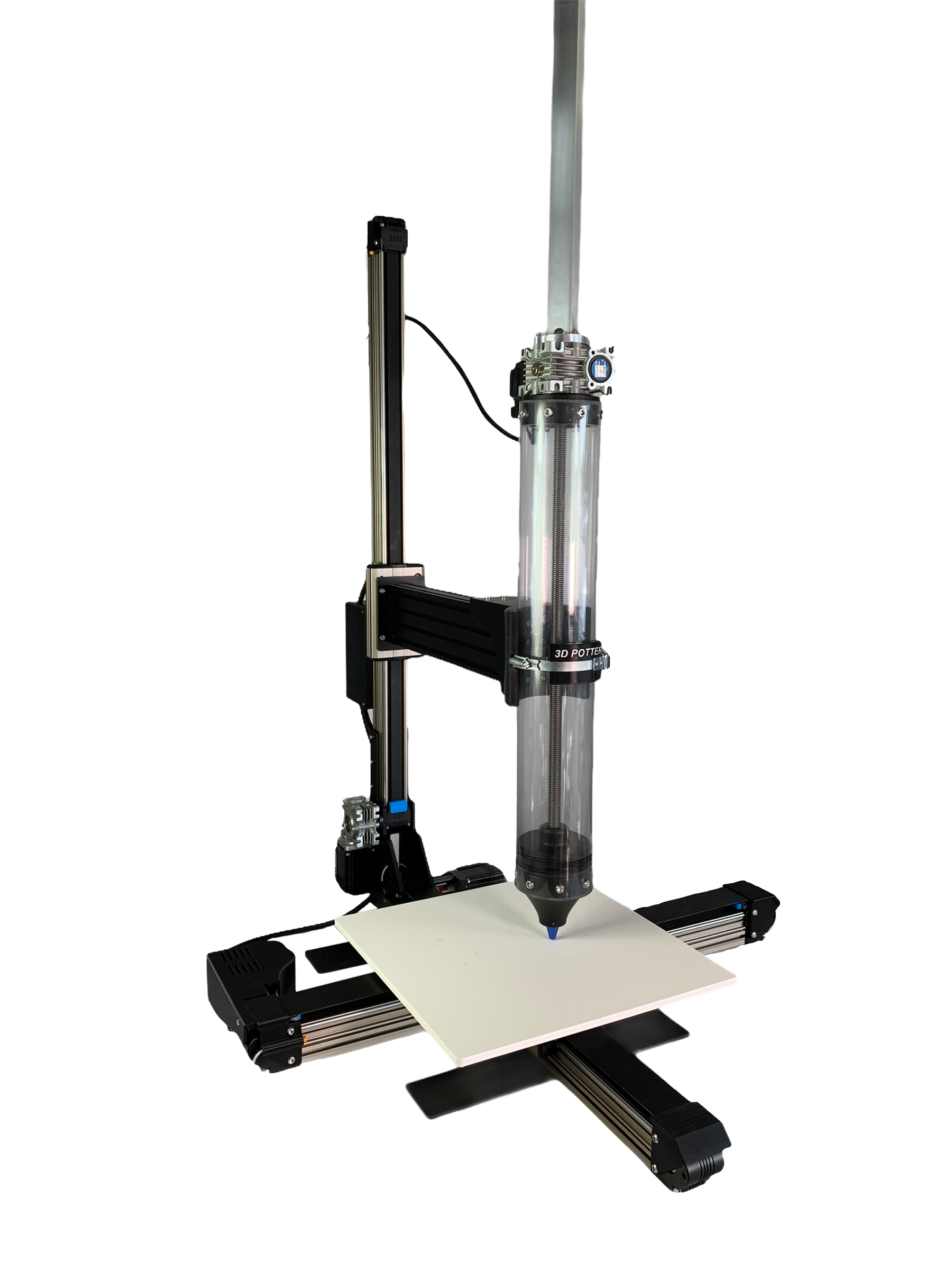

3D PotterBot 10 XL


It uses our strongest motors and has 30% more printing area than our standard size model, allowing for even more creative designs.

Please contact us to purchase this item. We only accept cash, check, or wire transfer for this item. Purchase by credit card will incur a 3% fee.

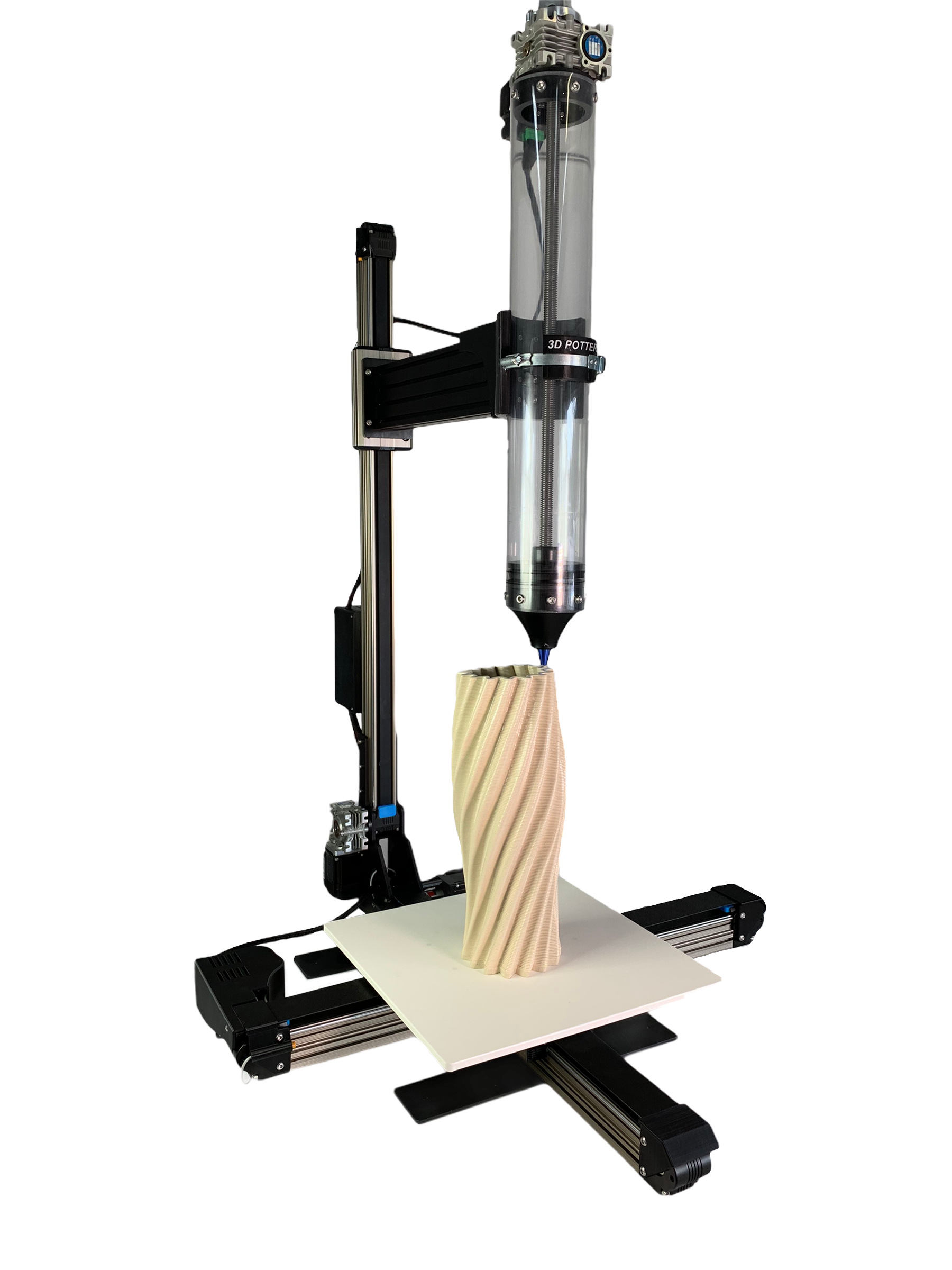

The 10 XL ceramic 3D printer can print vessels up to 28" (71cm) high. The 10 XL has the largest extruder out of all of our printers, holding 18 pounds of clay. This lets you print more and reload less. With a 4000ml extruder, you can print dozens of objects and still have clay left over.

3D Potter Clay Printers

3D Potter clay printers use high-quality anodized aluminum rails. These rails are robust and have a smooth surface, allowing for easy movement of parts while being able to withstand classroom or industrial environments.

The unique feature of our printers is the direct extrusion of real clay. Other brands use a compressed air system printing with slip (watered down clay or an alcohol diluted clay). The advantage of direct extrusion is the ability to print with full bodied clay, or other paste-like materials. All materials used to build our printers are food grade, so get creative.

The 10th generation ceramic 3D printer brings a full web interface controlled over WiFi. You can now control and upload files to the printer from multiple devices simultaneously. The interface allows you full control over every setting of the machine. Interface preview.

The 10th generation also has a uniform nozzle design across all of our printers. This allows you to interchange nozzles between all of our printers, from the Micro to the Scara V3.

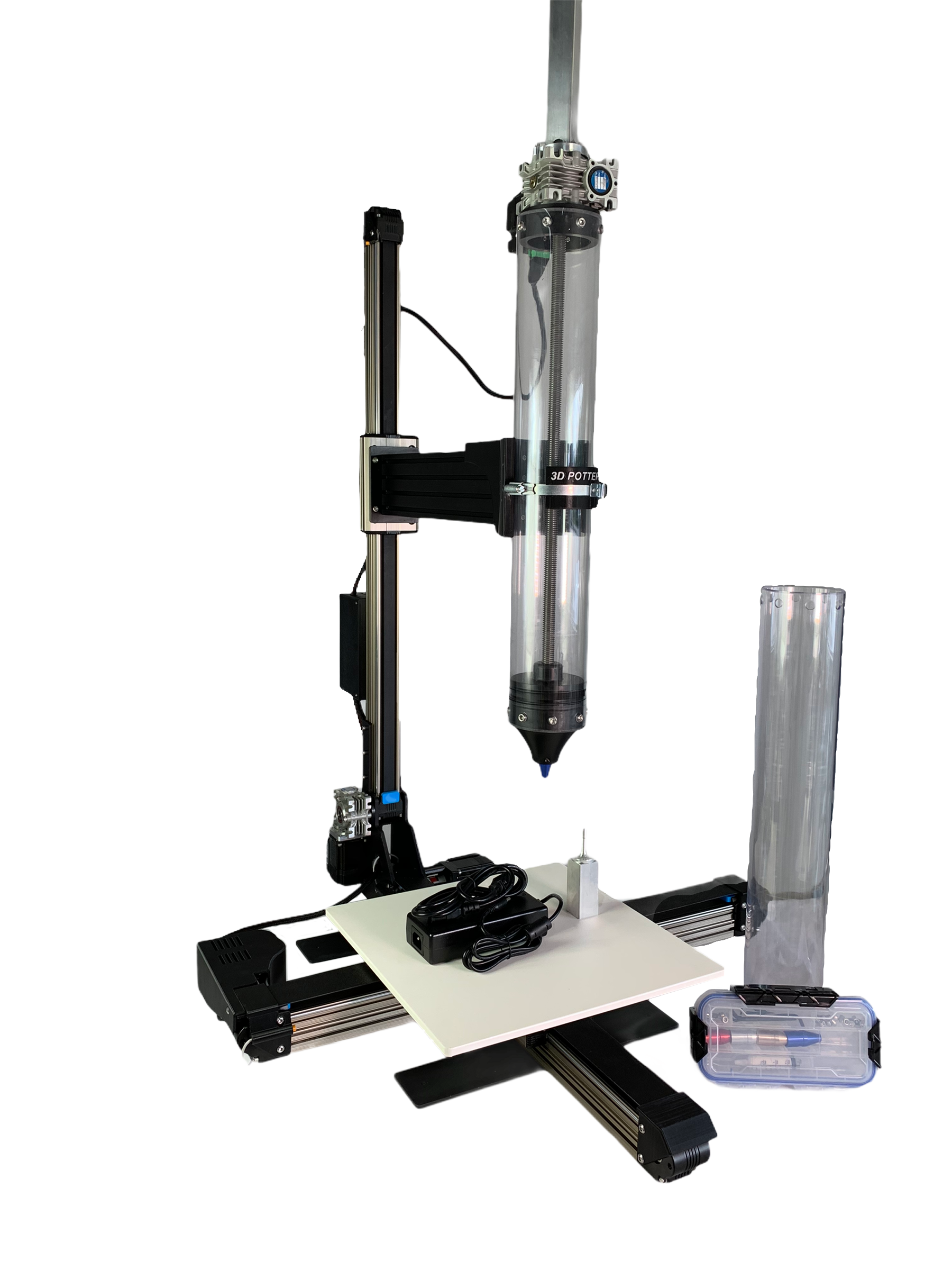

What's included:

1. 3D PotterBot 10 XL

2. Closed loop stepper on X, Y, Z, extruder

3. 3600ml or 4000ml extruder, 2 tubes and anti-Rotator

4. Anodized aluminum print nozzles (in sizes: 3, 4, 5, and 6mm)

5. Parts Box: Alan key set, grease, Acme driver tool

6. Power Supply

7. Wall mount bracket


Printing Envelope:
X-19.3" (490 mm)
Y-19.3" (490 mm)
Z-28" (710 mm)

Printer size:
W-32” L-40” H-47”
Normal operation space needed 3600ml: W-32” L-40” H-82”
Normal operation space needed 4000ml: W-32” L-40” H-85”
Maximum operation space needed: W-35” L-42” H-89”
Print Bed 15x15in” (381x381mm)
Height with the extruder fully extended is 89” (2260mm)
Weight with extruder: 60 lbs.

Recommended print speed: 0.4”/s’ to 7.9’’/s (10 to 200 mm/s)
Maximum print speed: 7.9in”/s (200mm/s)
Power Supply: Output - 24V 10 amps, Input - 100-240V, 50-60 Hertz.
Power consumption: 24V ~6 amps, ~144 Watts
Main controller board running Duet3D with Atmel SAM4E8E: 120MHz ARM Cortex-M4

Full control through the web interface, no apps or software installation.

Additional information

Tube Size:

3600ml, 4000ml

Connection Type:

WiFi, Ethernet (+$100)
