5L Pump (vertical lift)
$5,900.00
The 5L pump can pump up to 5 Liters of cementitious material per minute through 30 ft of hose. Easy to use, easy to clean.
This pump is ideal to work in conjunction with our Continuous Cement Mix Station. It works exceptionally well with 2K material like Sika #752 and with our Mixcell System. It can work with 1K material if properly mixed.
Please contact us to purchase this item. We only accept cash, check, or wire transfer for this item. All credit card purchases incur a 3% fee.

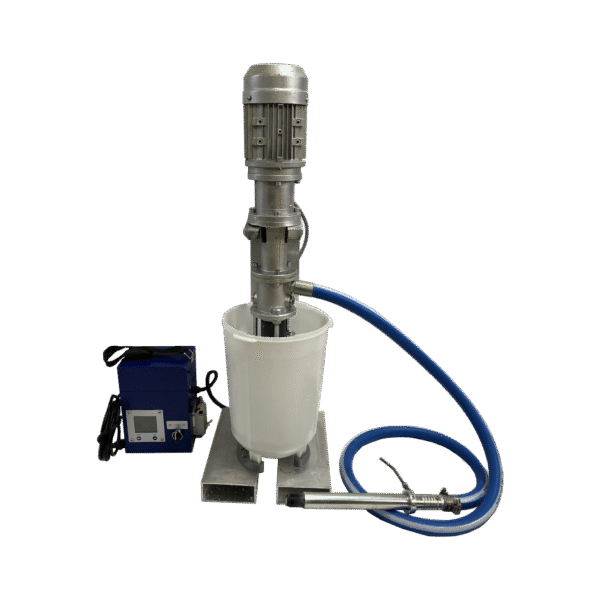

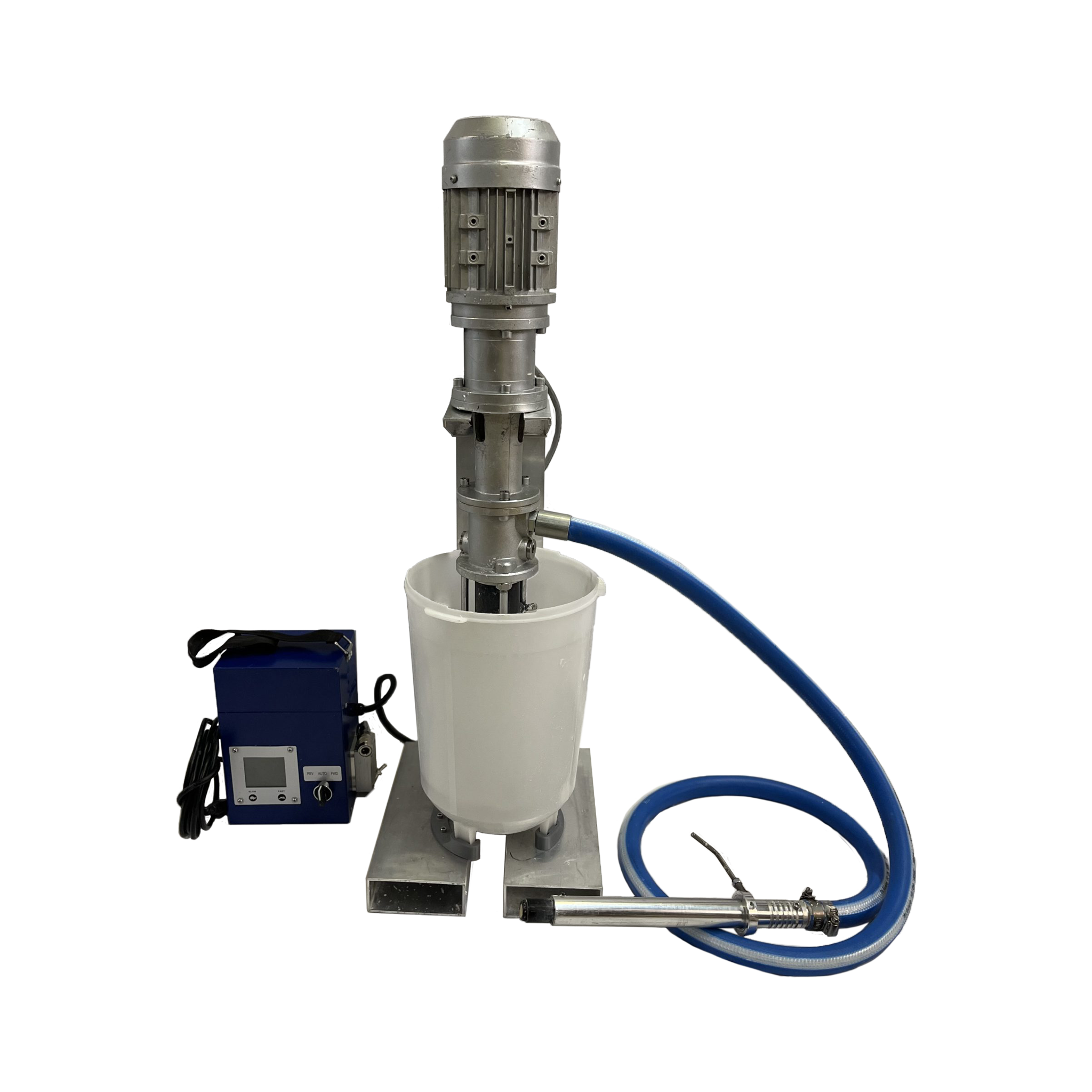

5L Pump
This pump is specifically designed to work with our Continuous Cement Mix Station. Utilizing this pump eliminates the need for a large reservoir and reduces the excessive dwell time of the material, thereby increasing the performance of technical cementitious materials.
What’s Included:
- 5 liter/min max flow rate
- Pump stand with a material settler
- 3-gallon material reservoir
- 15 ft of hose and a nozzle assembly for our Scara robot.
- Print nozzles: 16mm, 19mm, and 25mm (5/8, 3/4, and 1 inch)
Max grain size: 3/32" (2.4mm)
Max pressure: 250 psi
Power: 110v 15amp
Compatible Machines and Accessories:
- Scara Elite:Â Large-scale cement 3D printer -Â https://3dpotter.com/product/scara-elite-v2/
- Scara Elite Roadrunner:Â The ideal 3D printer for building houses -Â https://3dpotter.com/product/scara-elite-roadrunner/
- Scara HD: Purpose-built for printing large-scale projects, such as housing - https://3dpotter.com/product/scara-hd/

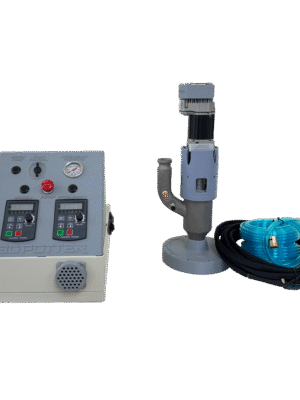

- Mixcell System:Â Designed for the injection of accelerants and coloring additives into the cementitious materials -Â https://3dpotter.com/product/coyote-mixcell-and-accelerant-pump/
- Mixcell HD:Â Designed for the injection of accelerants and coloring additives into the cementitious materials, purpose-built for large-scale construction -Â https://3dpotter.com/product/mixcell-hd/
- Continuous Cement Mix Station:Â Our innovative computer-controlled Mixing Station, specifically constructed for the new generation of cementitious 3D printing materials -Â https://3dpotter.com/product/continuous-cement-mix-station/
*All pumps and mixers come with a limited 90-day warranty.*
